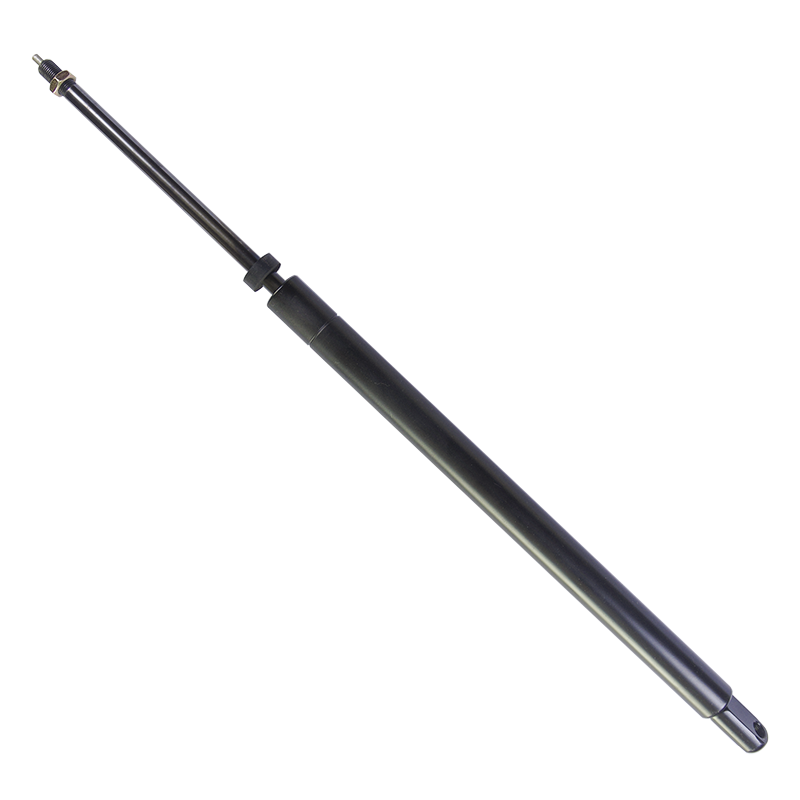

Lockable gas spring with rigid locking
Rigid Locking Gas Spring, unlike the purely gas-filled, locking springs, in which the gas characteristics induce spring locking, fills the whole working range of piston with oil, allowing rigid locking and installation in any direction
DESCRIPTION
Lockable gas spring with rigid locking, unlike the purely gas-filled, locking springs, in which the gas characteristics induce spring locking, fills the whole working range of piston with oil, allowing rigid locking and installation in any direction.
Not only could this type of spring provide high oil locking force and variable locking and optimized weight compensation during lifting, lowering, opening, and closing, but also it enjoys the advantages of compact design for small spaces and easy mounting because of a variety of end fitting options. And it can apply to head and foot panel adjustments in hospital beds, operating tables, wheelchairs, height adjustment in walker and armrest, headrest, driver seat adjustment, as well as desktop/table height and inclination adjustment.
Rigid Locking Gas Spring Installation Dimensions
Specifications of Rigid Locking Gas Springs
| SPECIFICATION | FORCE(N) | STROKE(MM) | C-C LENGTH(MM) | CONNECTORS |
|---|---|---|---|---|
| JKQ10-28-60-228(O-N)900N | 900 | 60 | 228 | O-N |
| JKQ10-28-80-269(O-N)200N | 200 | 80 | 269 | O-N |
| JKQ10-28-80-269(O-N)600N | 600 | 80 | 269 | O-N |
| JKQ10-28-100-310(O-N)600N | 600 | 100 | 310 | O-N |
| JKQ10-28-120-348(O-N)500N | 500 | 120 | 348 | O-N |
| JKQ10-28-160-430(O-N)500N | 500 | 160 | 430 | O-N |
| JKQ10-28-200-509(O-N)300N | 300 | 200 | 509 | O-N |
| JKQ10-28-250-610(O-N)800N | 800 | 250 | 610 | O-N |
| JKQ10-28-250-610(O-N)900N | 900 | 250 | 610 | O-N |
Rigid Locking Gas Spring Application

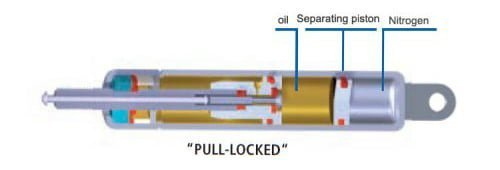

Rigid Extension Locking Gas Spring
Rigid Compression Locking Gas Spring
