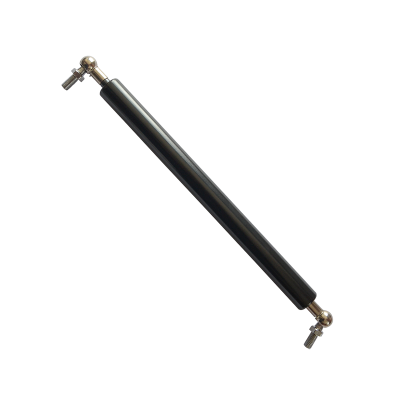

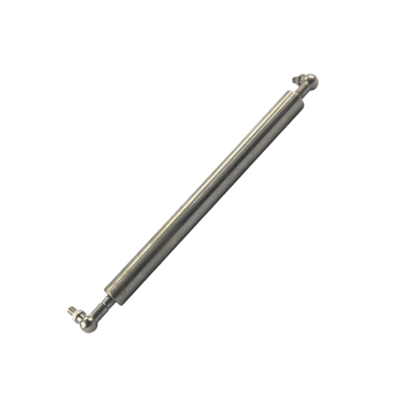

Tension Gas Springs
Unlike standard gas springs，tension gas springs work in a different way . And tension gas springs can provide a controlled tension force instead of pressure force.
DESCRIPTION
Unlike standard gas springs，tension gas springs work in a different way . And tension gas springs can provide a controlled tension force instead of pressure force.
When an opening is closed, the tension spring supports the manual force. It consists of a pressure tube and a piston rod with piston. In addition, a seal to prevent possible loss of gas is fitted at the piston rod guide. The tension spring is fitted with compressed gas – nitrogen which provides the spring force. In the unpressurised state, the piston rod is always retracted.
Pulling out the piston rod reduces the volume in the cylinder and the gas is compressed. This creates an increase in force (progression) for the spring, which depends on the diameter of the piston rod and the volume of the cylinder. The piston has a small opening (nozzle), through which the gas can flow. Thus, allowing the piston rod to move at a defined speed. The cross-section (diameter) of this opening defines the degree of damping of a spring.
| SPECIFICATION | FORCE(N) | STROKE(MM) | C-C LENGTH(MM) | CONNECTORS |
|---|---|---|---|---|
| YQ12-24-220-735(B-B)1200N | 1200 | 220 | 735 | B-B |
| YQ12-24-145-400(B-B)350N | 350 | 145 | 400 | B-B |
| YQ12-24-180-510(B-B)1000N | 1000 | 180 | 510 | B-B |
| YQ12-24-200-540(O-O)800N | 800 | 200 | 540 | O-O |
| YQ12-24-170-560(U-U)450N | 450 | 170 | 560 | U-U |
| YQ12-24-240-720(B-U)1300N | 1300 | 240 | 720 | B-U |

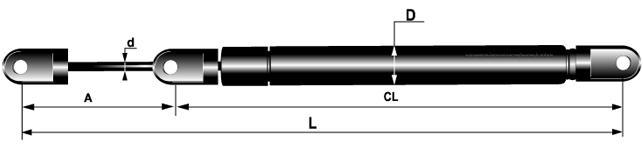

Tension Gas Springs Installation Dimensions

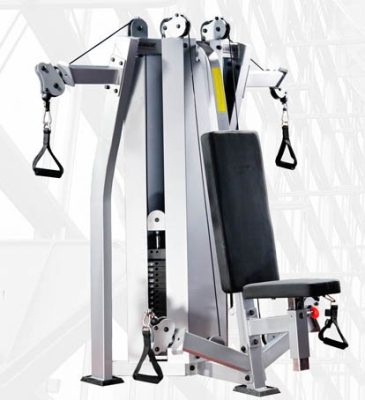

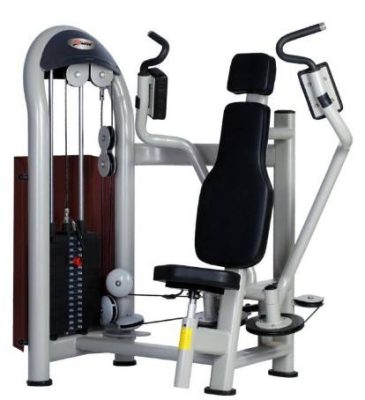

Tension Gas Springs Application
