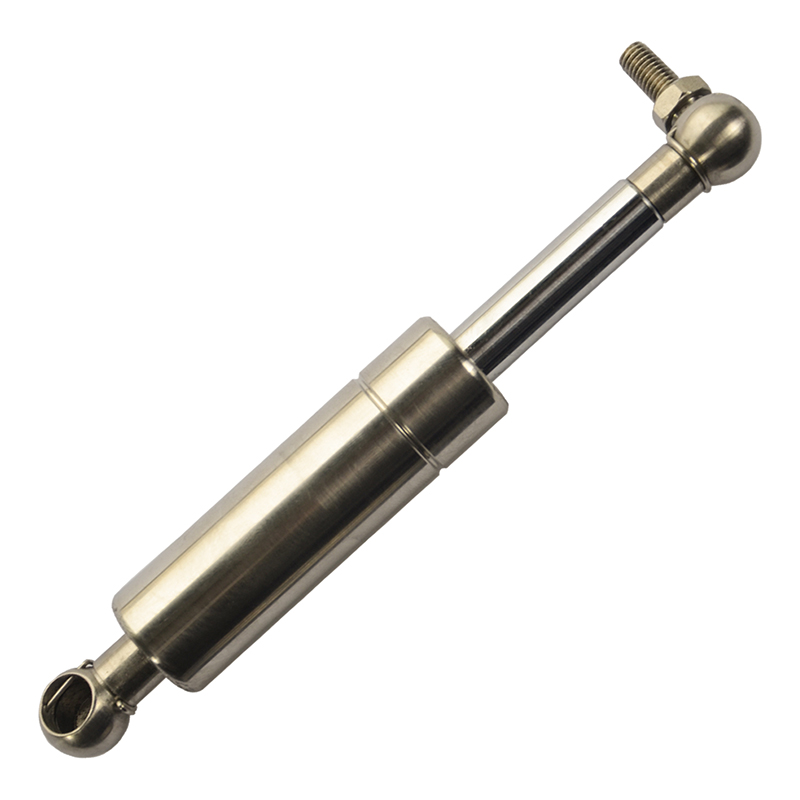

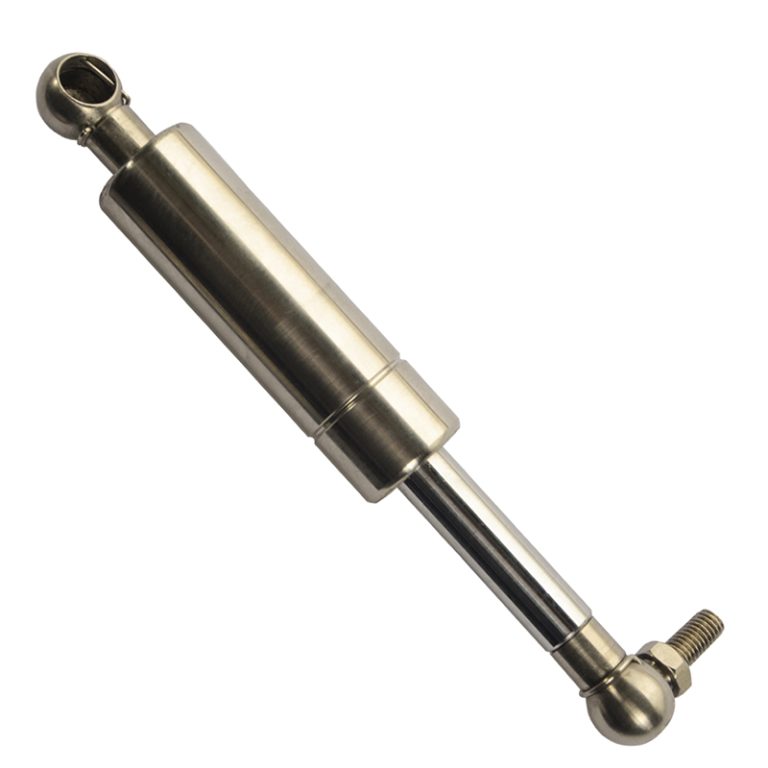

Stainless Steel Gas Spring
Stainless gas springs are maintenance-free, self-contained systems that are filled with nitrogen under high pressure and under no circumstances should they be opened or overloaded.
DESCRIPTION
What are Stainless Steel Gas Springs (Struts)?
Stainless Steel Standard Gas Springs-Made from 316 stainless steel, these Gas Springs (sometimes called Gas Struts) are suited for exposure to harsh environmental conditions and will not rust or corrode. Surfaces are specially treated for additional hardness. The 316 stainless steel provides the high cleanliness and corrosion protection required for saltwater applications or marine, medical, chemical, and food service industries. The Standard Gas Springs come in fixed force steps, up to the spring’s maximum. These are best suited for applications where the same force output is required for every cycle. If the application requires a specific force, ASRaymond will manufacture to the custom requirements and hold the stock for delivery, when and where they are needed.
Stainless Steel Gas Struts Installation Dimensions
| SPECIFICATION | FORCE(N) | STROKE(MM) | C-C LENGTH(MM) | CONNECTORS |
|---|---|---|---|---|
| YQ10-22-260-725(B-L)500N | 500 | 260 | 725 | B-L |
| YQ10-22-213-570(B-B)700N | 700 | 213 | 570 | B-B |
| YQ10-22-220-532(B-B)450N | 450 | 220 | 532 | B-B |
| YQ10-22-248-585(O-O)650N | 650 | 248 | 585 | O-O |
| YQ10-22-260-625(B-B)300N | 300 | 260 | 625 | B-B |
| YQ10-22-170-560(U-U)450N | 450 | 170 | 560 | U-U |
| YQ10-22-260-630(B-B)300N | 300 | 260 | 630 | B-B |
| YQ10-22-250-593.5(O-O)550N | 550 | 250 | 593.5 | O-O |
| YQ10-22-270-642(O-O)450N | 450 | 270 | 642 | O-O |
| YQ10-22-298-690(B-B)600N | 600 | 298 | 690 | B-B |
| YQ10-22-280-680(B-B)300N | 300 | 280 | 680 | B-B |
| YQ10-22-233-632(O-O)530N | 530 | 233 | 632 | O-O |
Features & Benefits of Stainless Steel Gas Spring
304/316 Stainless Steel Tube and Rod End of Travel Dampening
Designed & built to the highest gas spring manufacturing standards
High life cycle design
Low electrolytic capacity
Corrosion Resistance
Low magnetic signature
Multiple end fitting choices
Ideal for marine, petrochemical, pharmaceutical, medical, and food industry applications,and high technology industries
Applications of stainless steel springs
Marine applications of Stainless Steel Gas Spring
Food service and processing equipment
Petrochemical
Medical and Pharmaceutical
Applications requiring non-magnetic components
